Parts of a Dishwasher: 15 Components Explained
A built-in dishwasher fills with a controlled amount of water, circulates it through spray arms, filters debris, heats water or air during selected stages, and pumps wastewater into the household drain. These 15 components perform the main mechanical and user-facing functions.

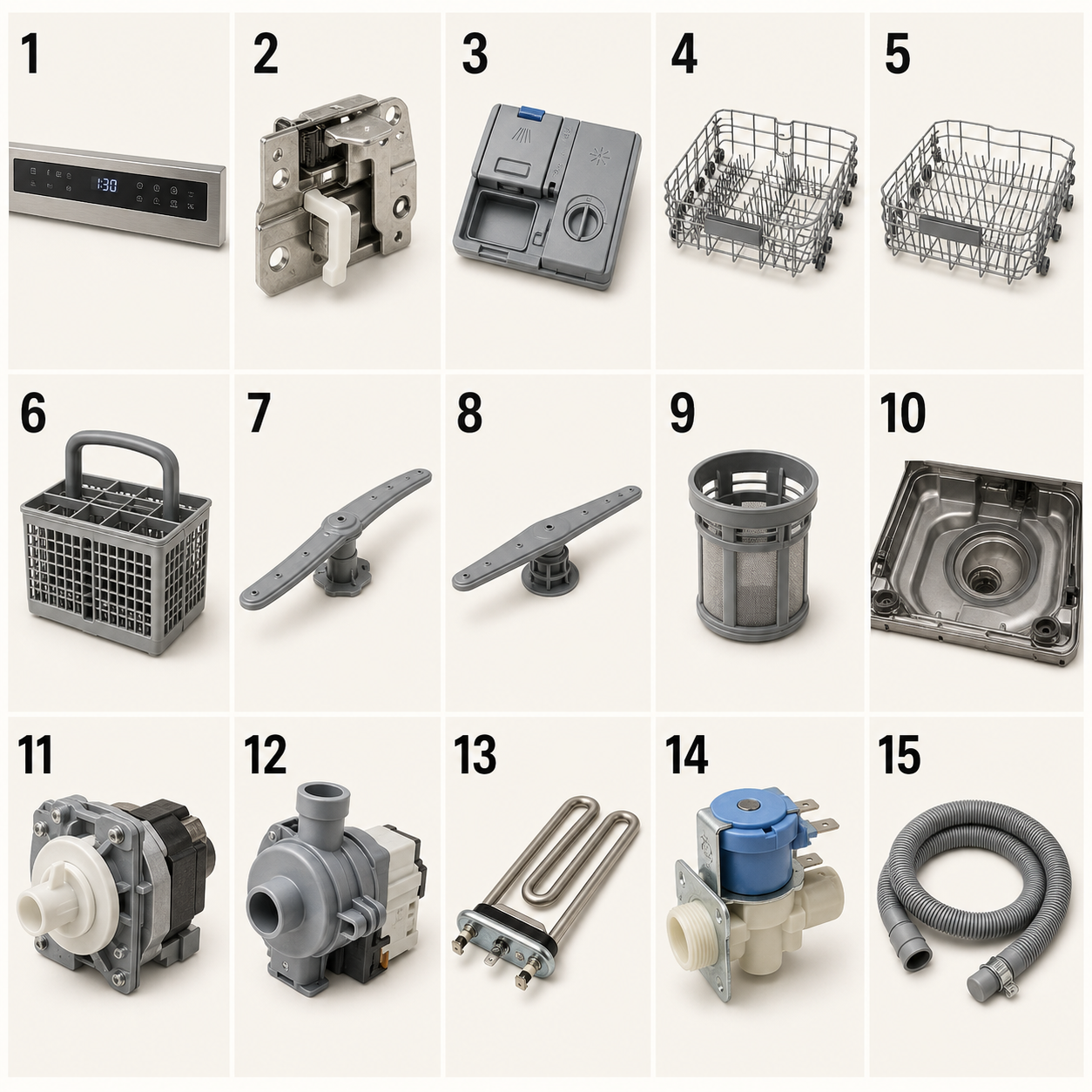

Dishwasher parts shown in the image
1. Control panel
Buttons, indicators, and the electronic interface let the user select a cycle and options.
2. Door latch
The latch holds the door closed and operates a safety switch that prevents normal washing with the door open.
3. Detergent dispenser
The dispenser stores detergent and releases it at the programmed point in the cycle. A separate chamber may hold rinse aid.
4. Upper rack
The upper rack supports glasses, cups, and smaller items. Its height may be adjustable.
5. Lower rack
The lower rack holds plates, cookware, and heavier items while preserving clearance for the lower spray arm.
6. Silverware basket
The basket separates utensils so spray water can reach their surfaces and keeps them away from moving parts.
7. Upper spray arm
Pressurized water exits small jets and rotates the arm to wash the upper rack.
8. Lower spray arm
The lower arm distributes water across the main tub. Tall items can block its rotation.
9. Filter
The filter captures food particles before they recirculate. Some filters need regular manual cleaning.
10. Sump
The sump is the low collection area beneath the filter where wash water gathers before circulation or draining.
11. Circulation pump
This pump moves wash water from the sump to the spray arms. Noise or weak spray can have several causes beyond the pump itself.
12. Drain pump
The drain pump sends wastewater through the drain hose at the end of selected cycle stages.
13. Heating element
An exposed or concealed heater may raise water temperature or assist drying, depending on the appliance design.
14. Water inlet valve
The electrically controlled valve admits household water when the controller calls for a fill.
15. Drain hose
The corrugated hose carries wastewater to the sink drain, disposal, or approved air-gap connection.
Frequently confused parts
- Circulation pump vs. drain pump: one recirculates wash water; the other removes wastewater.
- Filter vs. disposer: many modern dishwashers use a removable filter rather than a hard-food disposer.
- Inlet valve vs. shutoff valve: the inlet valve is inside the appliance; the manual shutoff is on the household supply.
- Air gap vs. high loop: both address backflow risk, but requirements differ by location.
Disconnect electrical power, close the water supply, and follow the manufacturer's service instructions before removing any panel. Leaks near wiring, damaged cords, repeated breaker trips, or appliance removal should be handled by qualified technicians.
